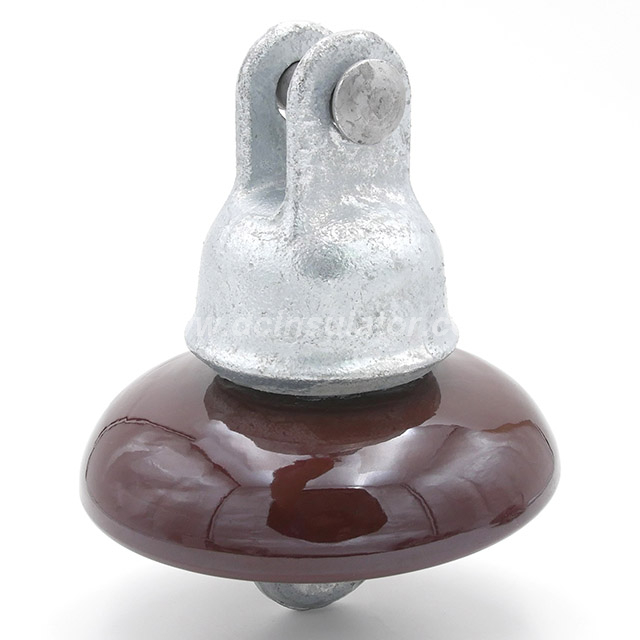

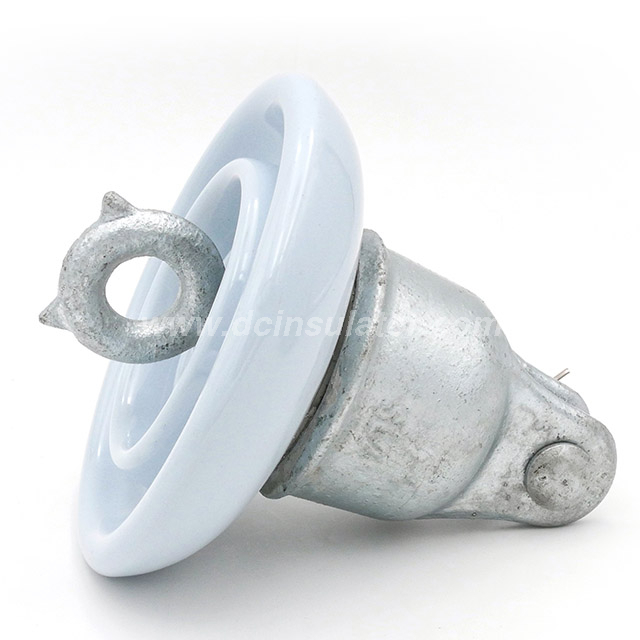

ANSI 52-2
TCI
Mechanical Values
M&E strength: 15000pounds(67kN)
Impact strength: 45inchpounds(5.0N-m)
Tension proof: 7000pounds(33.5kN)
Electrical Values
Lowfrequency dry flashover: 65kV
Lowfrequency wet flashover: 35kV
Critical impulse flashover,positive: 115kV
Critical impulse flashover, negative: 115kV
Lowfrequency puncture voltage: 90kV
Radio-influence Voltage
Lowfrequency test voltage: 7.5kV
Maximum RIV at 1,000 kHz: 50μV
Mechanical Values
M&E strength: 15000pounds(67kN)
Impact strength: 45inchpounds(5.0N-m)
Tension proof: 7000pounds(33.5kN)
Electrical Values
Lowfrequency dry flashover: 65kV
Lowfrequency wet flashover: 35kV
Critical impulse flashover,positive: 115kV
Critical impulse flashover, negative: 115kV
Lowfrequency puncture voltage: 90kV
Radio-influence Voltage
Lowfrequency test voltage: 7.5kV
Maximum RIV at 1,000 kHz: 50μV
