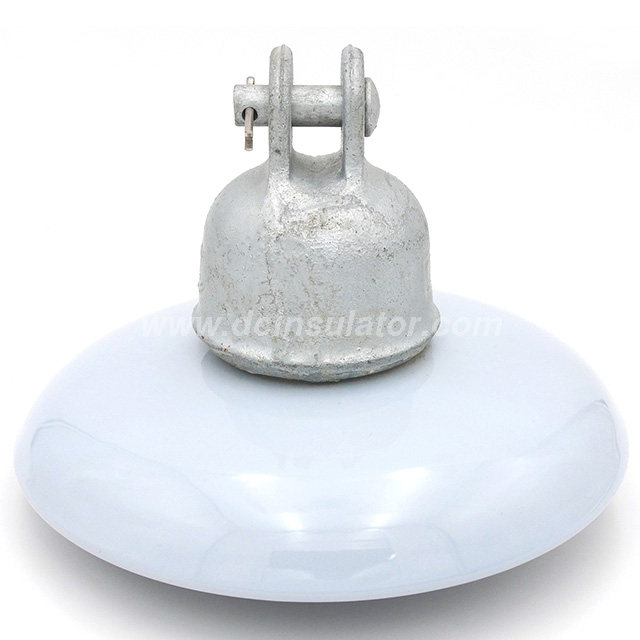

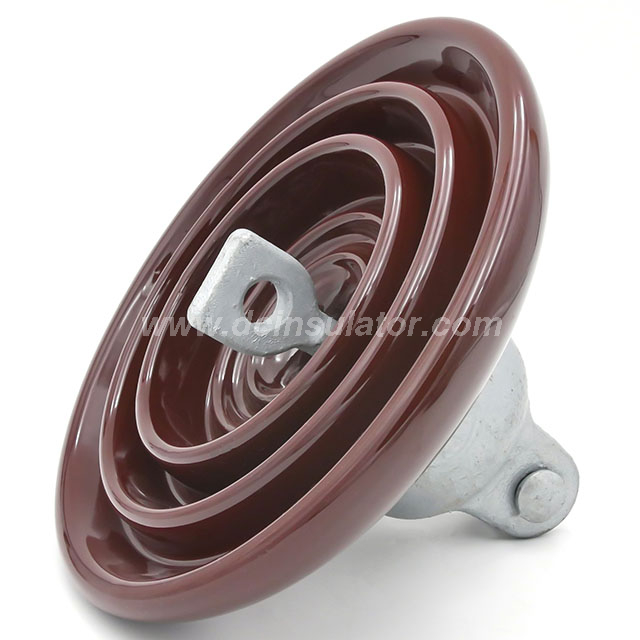

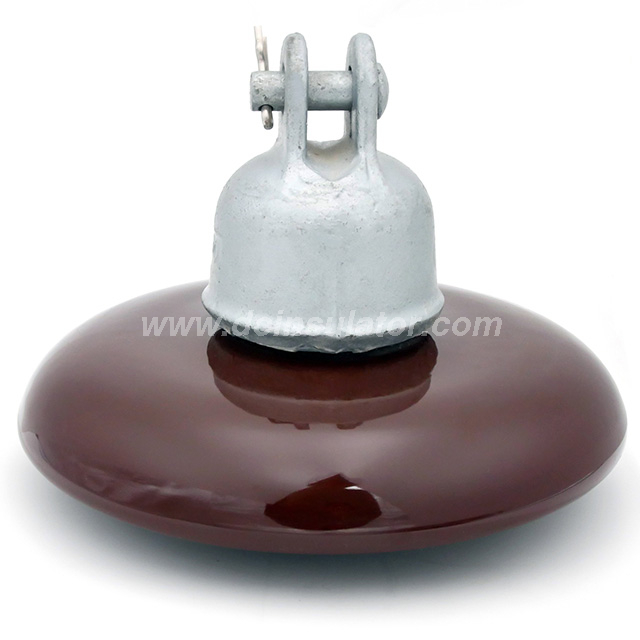

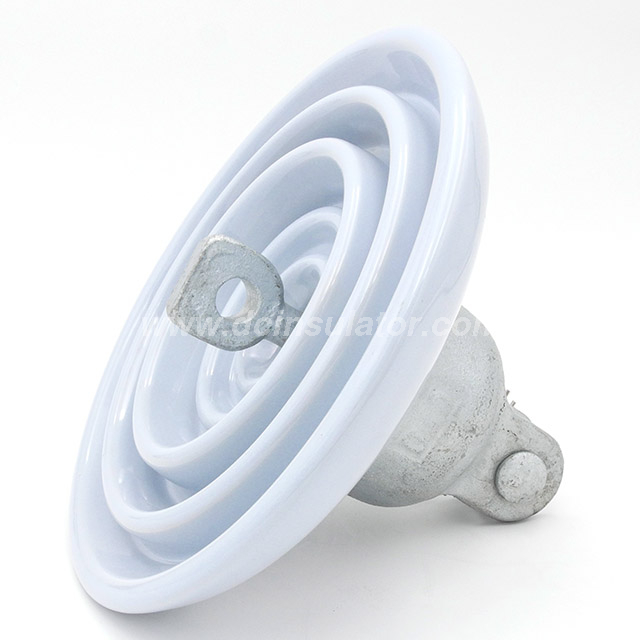

ANSI 52-4
TCI
Mechanical Values
M&E strength: 15000pounds(67kN)
Impact strength: 55inchpounds(6.0N-m)
Tension proof: 7500pounds(33.5kN)
Electrical Values
Lowfrequency dry flashover: 80kV
Lowfrequency wet flashover: 50kV
Critical impulse flashover,positive: 125kV
Critical impulse flashover, negative: 130kV
Lowfrequency puncture voltage: 110kV
Radio-influence Voltage
Lowfrequency test voltage: 10kV
Maximum RIV at 1,000 kHz: 50μV
Mechanical Values
M&E strength: 15000pounds(67kN)
Impact strength: 55inchpounds(6.0N-m)
Tension proof: 7500pounds(33.5kN)
Electrical Values
Lowfrequency dry flashover: 80kV
Lowfrequency wet flashover: 50kV
Critical impulse flashover,positive: 125kV
Critical impulse flashover, negative: 130kV
Lowfrequency puncture voltage: 110kV
Radio-influence Voltage
Lowfrequency test voltage: 10kV
Maximum RIV at 1,000 kHz: 50μV
