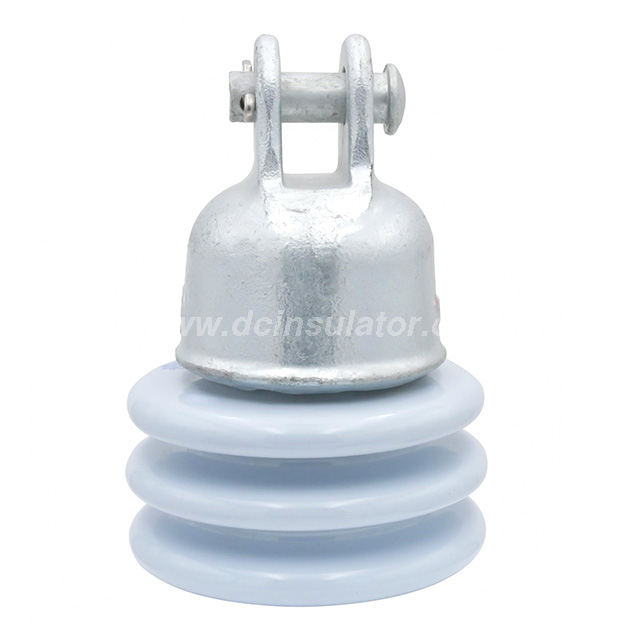

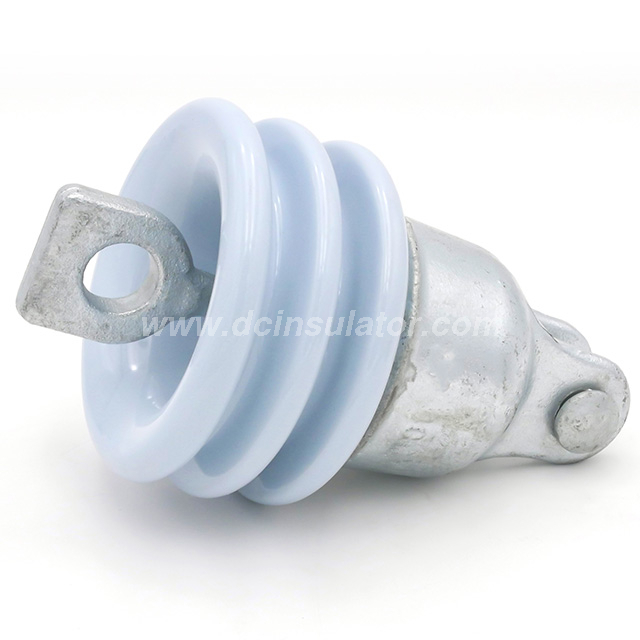

ANSI 52-9
TCI
Mechanical Values
M&E strength: 10000pounds(44kN)
Impact strength: 45inchpounds(5.0N-m)
Tension proof: 5000pounds(22kN)
Electrical Values
Lowfrequency dry flashover: 60kV
Lowfrequency wet flashover: 30kV
Critical impulse flashover,positive: 100kV
Critical impulse flashover, negative: 90kV
Lowfrequency puncture voltage: 80kV
Radio-influence Voltage
Lowfrequency test voltage: 7.5kV
Maximum RIV at 1,000 kHz: 50μV
Mechanical Values
M&E strength: 10000pounds(44kN)
Impact strength: 45inchpounds(5.0N-m)
Tension proof: 5000pounds(22kN)
Electrical Values
Lowfrequency dry flashover: 60kV
Lowfrequency wet flashover: 30kV
Critical impulse flashover,positive: 100kV
Critical impulse flashover, negative: 90kV
Lowfrequency puncture voltage: 80kV
Radio-influence Voltage
Lowfrequency test voltage: 7.5kV
Maximum RIV at 1,000 kHz: 50μV
