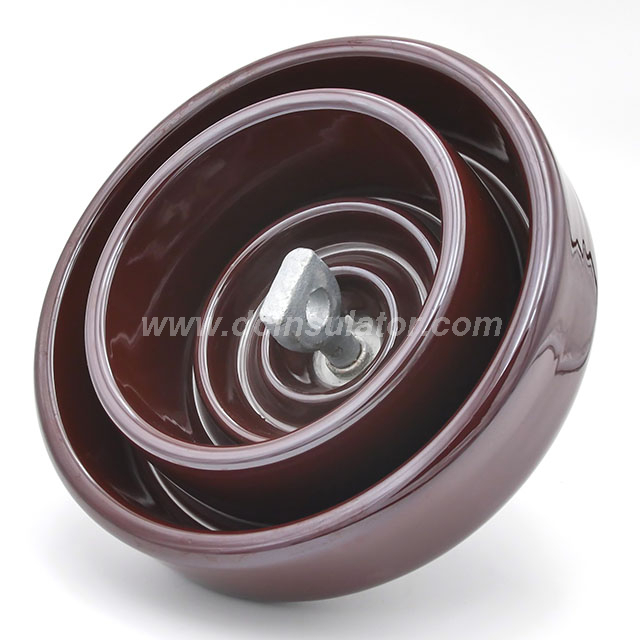

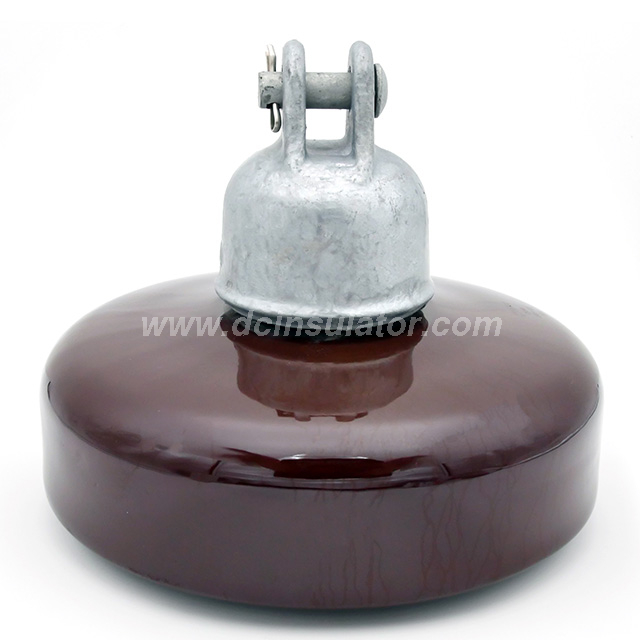

XHP-80F
TCI
Mechanical Values
M&E strength: 18000pounds(80kN)
Impact strength: 45inchpounds(5.0N-m)
Tension proof: 7100pounds(32kN)
Electrical Values
Lowfrequency dry flashover: 90kV
Lowfrequency wet flashover: 50kV
Lowfrequency puncture voltage: 120kV
Radio-influence Voltage
Lowfrequency test voltage: 10kV
Maximum RIV at 1,000 kHz: 50μV
Mechanical Values
M&E strength: 18000pounds(80kN)
Impact strength: 45inchpounds(5.0N-m)
Tension proof: 7100pounds(32kN)
Electrical Values
Lowfrequency dry flashover: 90kV
Lowfrequency wet flashover: 50kV
Lowfrequency puncture voltage: 120kV
Radio-influence Voltage
Lowfrequency test voltage: 10kV
Maximum RIV at 1,000 kHz: 50μV
