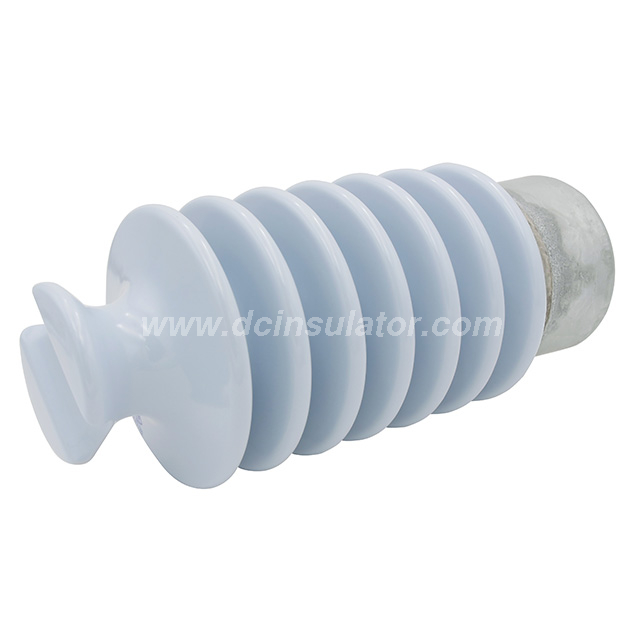

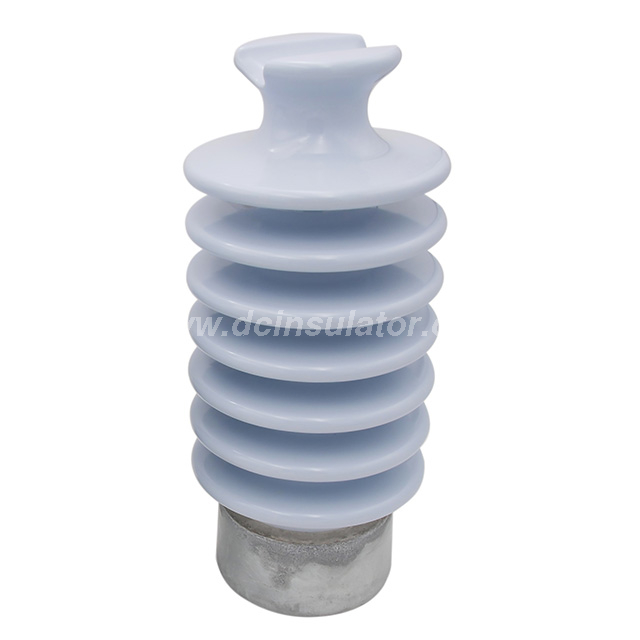

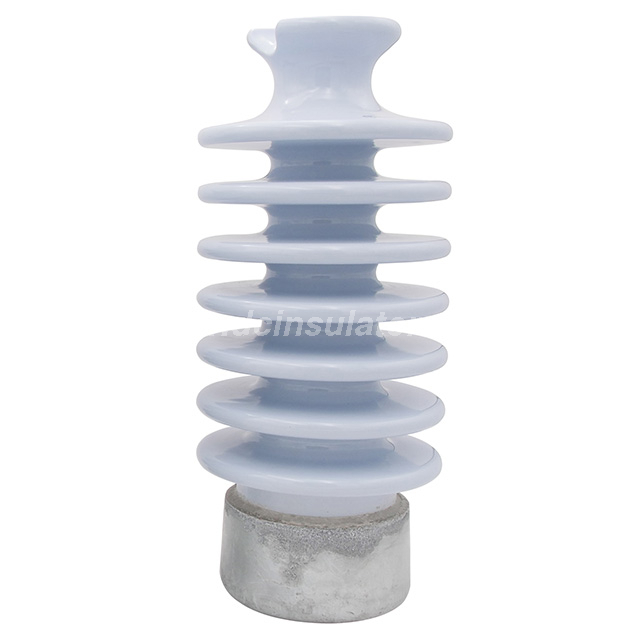

Line Post Insulators PL-065-B

Dimensions
Diameter (D): 5.75Inches (145mm)
Spacing (H): 14.37Inches (365mm)
Leakage distance: 27.56Inches (700mm)
Net Weight Each: 18.522Pounds (8.4kg)
Color:Gray,Brown
Availability:
Quantity:
Inquire Add to Basket

Line Post Insulators PL-065-B
Line Post Insulators PL-065-B
Line Post Insulators PL-065-B
Line Post Insulators PL-065-B
Line Post Insulators PL-065-B

  • PL-065-B M16

  • TCI

Mechanical Values

Cantilever Strength: 1800Pounds(8kN)


Electrical Values

Withstand Voltage Atmospheric Impulse,Dry: 170kV

Withstand Voltage Industrial Frequency,1 min,Under Rain: 70kV


Previous:
Next:
35 kV Line Post Insulator porcelain insulator
