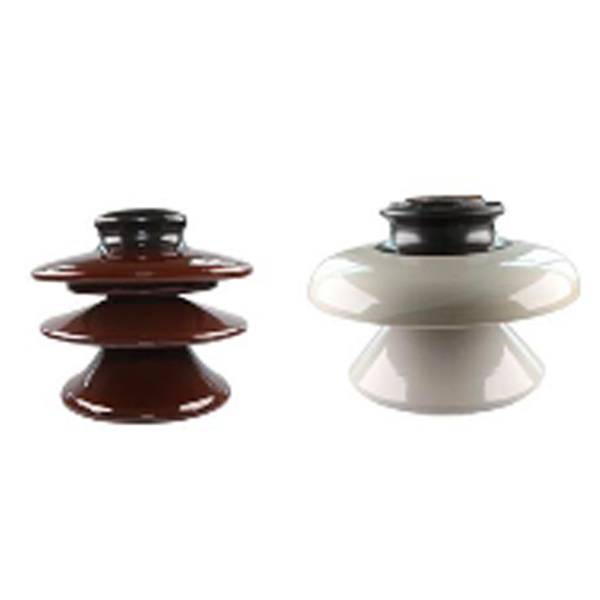

"As the name suggests, the pin type insulator is mounted on a pin on the cross-arm on the pole. There is a groove on the upper end of the insulator. The conductor passes through this groove and is tied to the insulator with annealed wire of the same material as the conductor.
Pin type insulators are used for transmission and distribution of electric power at voltages up to 33 kV.
Beyond operating voltage of 33 kV, the pin type insulators become too bulky and hence uneconomical."
Low and Medium Pin type Applied Standard: IEC60383; ANSI C29.5;ANSI C29.5 BS1027, AS4899-2007, NBR, GB and etc.
High voltage Type
11kV and33kV Color:brown, grey, white and etc.

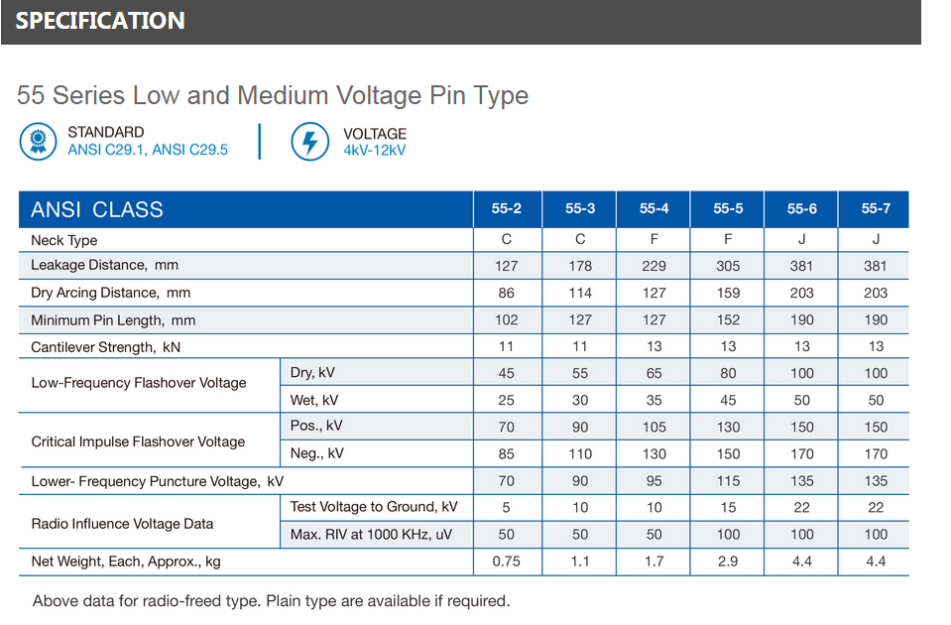

Main type: 55-2, 55-3, 55-4, 55-5, 56-1, 56-2, 56-3; P-11-y;P-33-Y; ALP-22-450; Fog type and Aerodynamic type etc.
"As the name suggests, the pin type insulator is mounted on a pin on the cross-arm on the pole. There is a groove on the upper end of the insulator. The conductor passes through this groove and is tied to the insulator with annealed wire of the same material as the conductor.
Pin type insulators are used for transmission and distribution of electric power at voltages up to 33 kV.
Beyond operating voltage of 33 kV, the pin type insulators become too bulky and hence uneconomical."
Low and Medium Pin type Applied Standard: IEC60383; ANSI C29.5;ANSI C29.5 BS1027, AS4899-2007, NBR, GB and etc.
High voltage Type
11kV and33kV Color:brown, grey, white and etc.
Main type: 55-2, 55-3, 55-4, 55-5, 56-1, 56-2, 56-3; P-11-y;P-33-Y; ALP-22-450; Fog type and Aerodynamic type etc.
