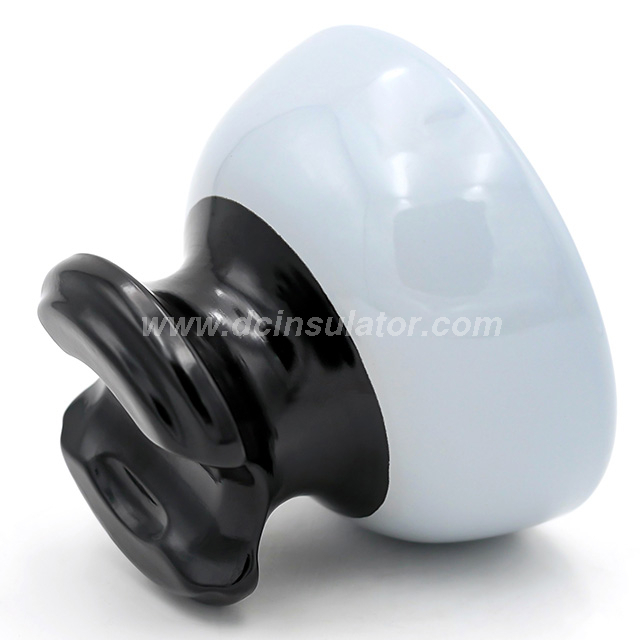

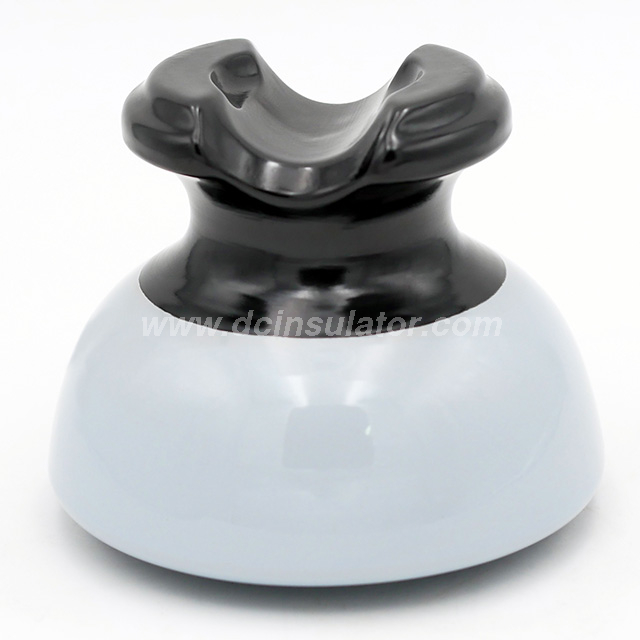

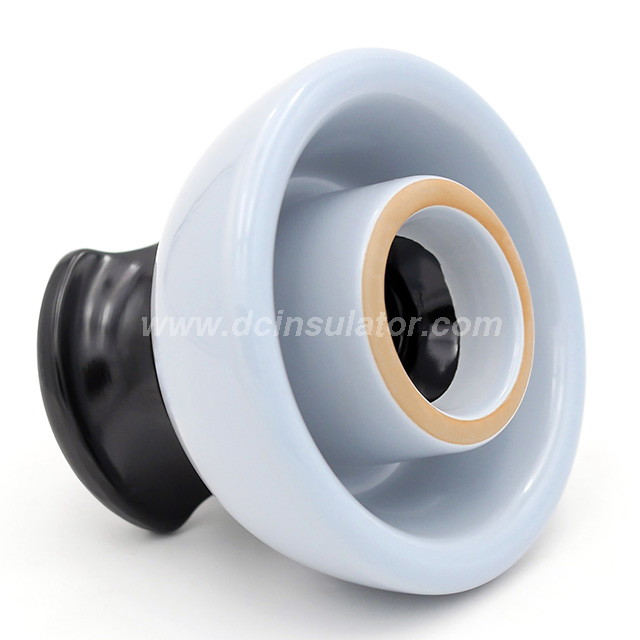

ANSI 55-3
TCI
Mechanical Values
Cantilever strength: 2500lbs(11kN)
Electrical Values
Low-frequency dry flashover: 55kV
Low-frequency wet flashover: 30kV
Critical impulse flashover, positive: 90kV
Critical impulse flashover, negative: 110kV
Low-frequency puncture voltage: 90kV
Radio-Influence Voltage Data
Low-frequency test voltage, rms to ground: 10kV
Maximum RIV at 1000 kHz: 50μV
Mechanical Values
Cantilever strength: 2500lbs(11kN)
Electrical Values
Low-frequency dry flashover: 55kV
Low-frequency wet flashover: 30kV
Critical impulse flashover, positive: 90kV
Critical impulse flashover, negative: 110kV
Low-frequency puncture voltage: 90kV
Radio-Influence Voltage Data
Low-frequency test voltage, rms to ground: 10kV
Maximum RIV at 1000 kHz: 50μV
