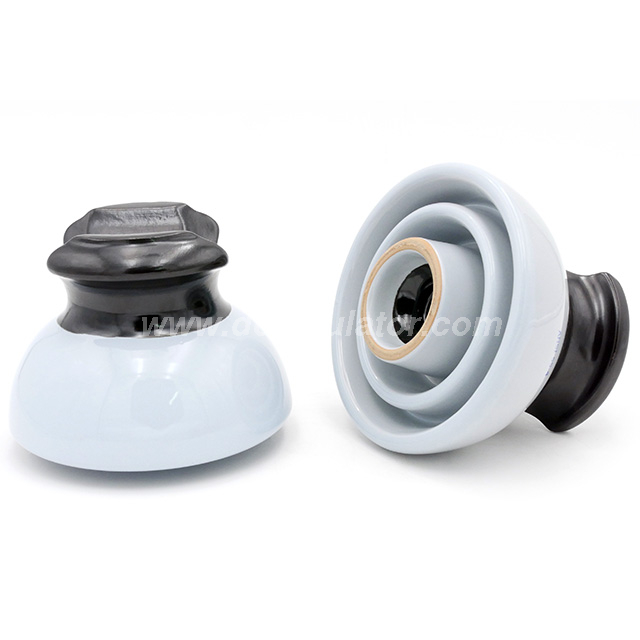

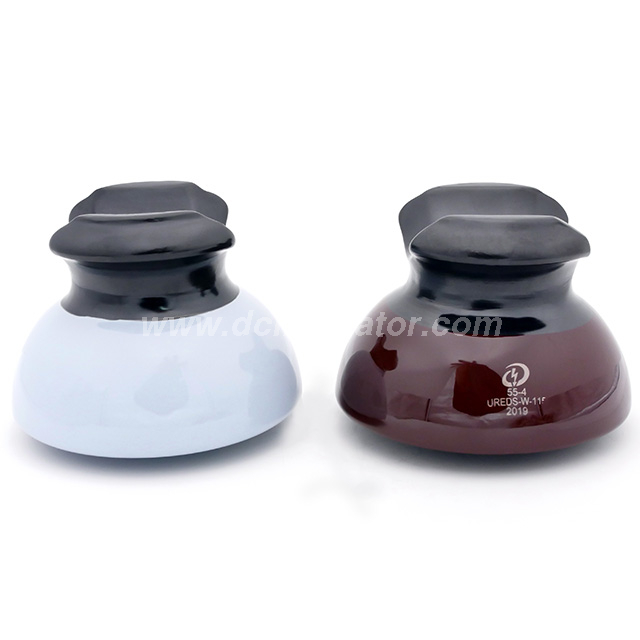

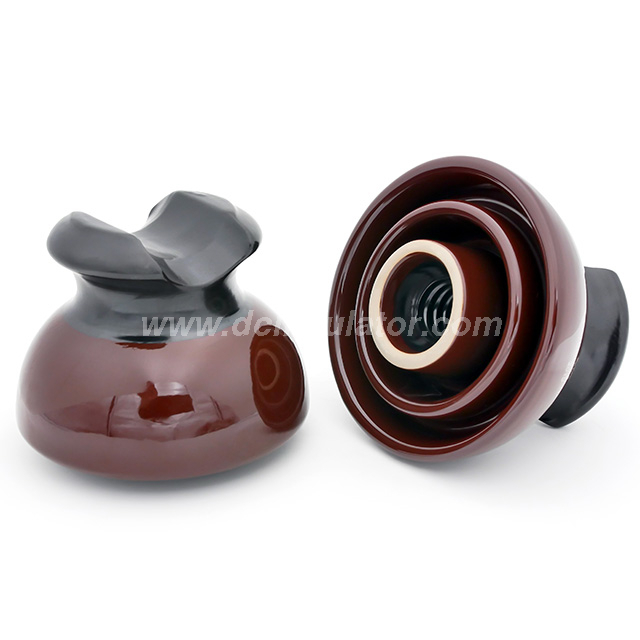

ANSI 55-4
TCI
Mechanical Values
Cantilever strength: 3000lbs(13kN)
Electrical Values
Low-frequency dry flashover: 65kV
Low-frequency wet flashover: 35kV
Critical impulse flashover, positive: 105kV
Critical impulse flashover, negative: 130kV
Low-frequency puncture voltage: 95kV
Radio-Influence Voltage Data
Low-frequency test voltage, rms to ground: 10kV
Maximum RIV at 1000 kHz: 50μV
Mechanical Values
Cantilever strength: 3000lbs(13kN)
Electrical Values
Low-frequency dry flashover: 65kV
Low-frequency wet flashover: 35kV
Critical impulse flashover, positive: 105kV
Critical impulse flashover, negative: 130kV
Low-frequency puncture voltage: 95kV
Radio-Influence Voltage Data
Low-frequency test voltage, rms to ground: 10kV
Maximum RIV at 1000 kHz: 50μV
