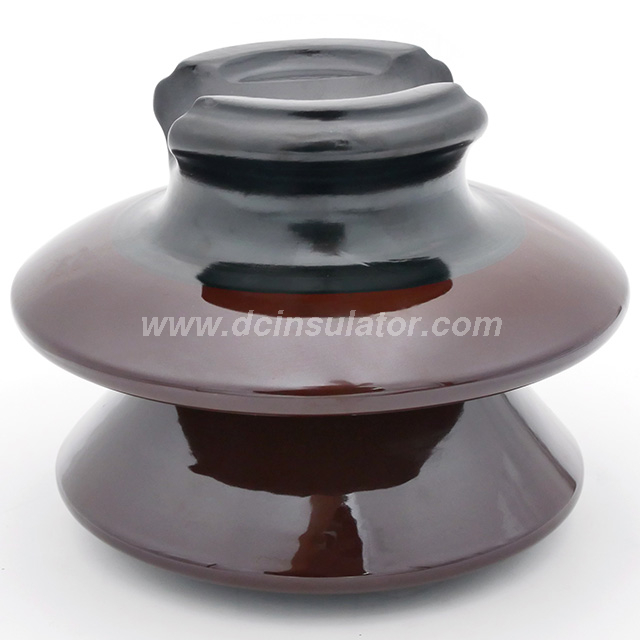

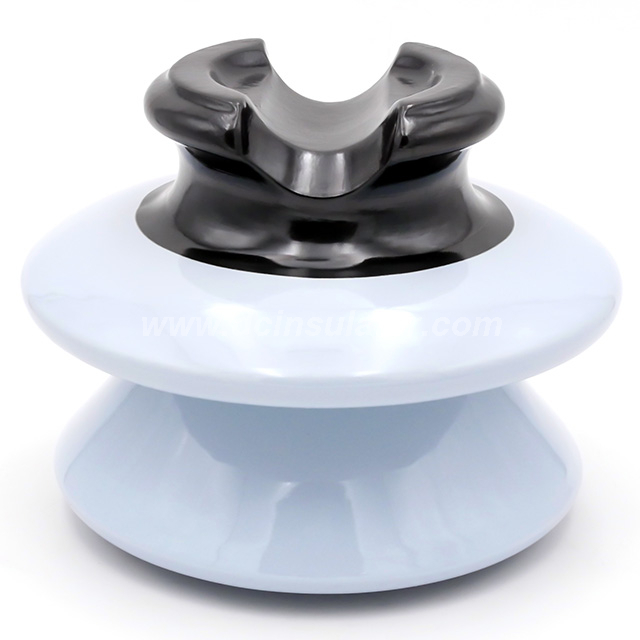

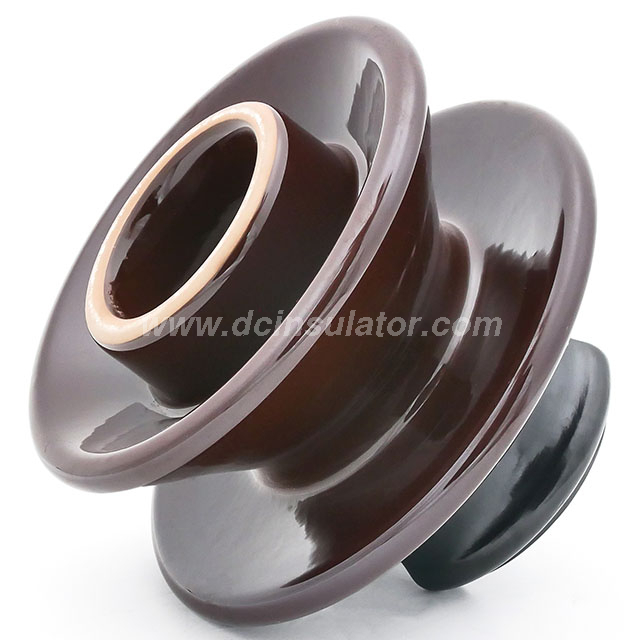

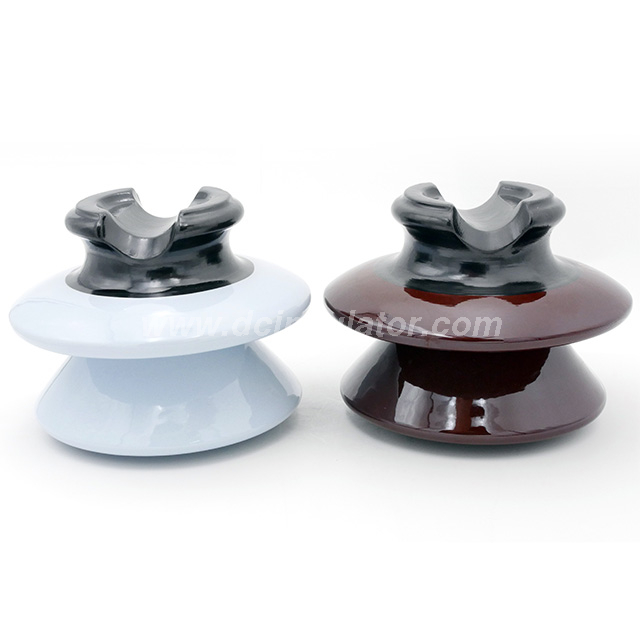

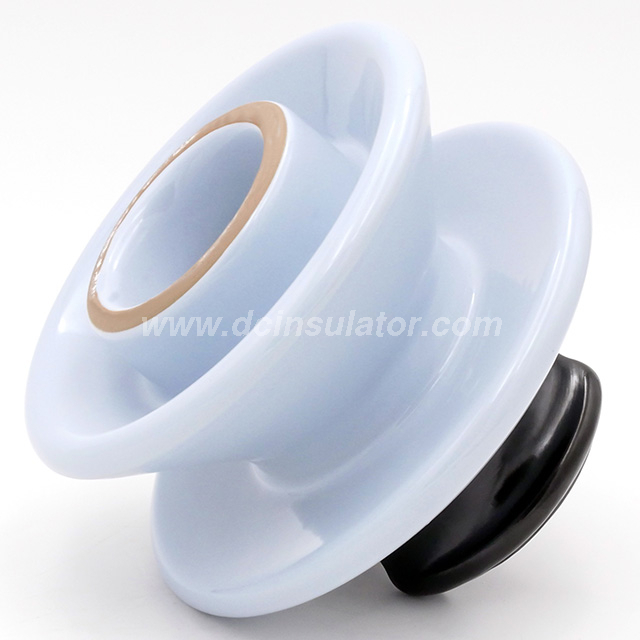

ANSI 56-1
TCI
Mechanical Values
Cantilever strength: 2500lbs(11kN)
Electrical Values
Low-frequency dry flashover: 95kV
Low-frequency wet flashover: 60kV
Critical impulse flashover, positive: 150kV
Critical impulse flashover, negative: 190kV
Low-frequency puncture voltage: 130kV
Radio-Influence Voltage Data
Low-frequency test voltage, rms to ground: 15kV
Maximum RIV at 1000 kHz: 100μV
Mechanical Values
Cantilever strength: 2500lbs(11kN)
Electrical Values
Low-frequency dry flashover: 95kV
Low-frequency wet flashover: 60kV
Critical impulse flashover, positive: 150kV
Critical impulse flashover, negative: 190kV
Low-frequency puncture voltage: 130kV
Radio-Influence Voltage Data
Low-frequency test voltage, rms to ground: 15kV
Maximum RIV at 1000 kHz: 100μV
