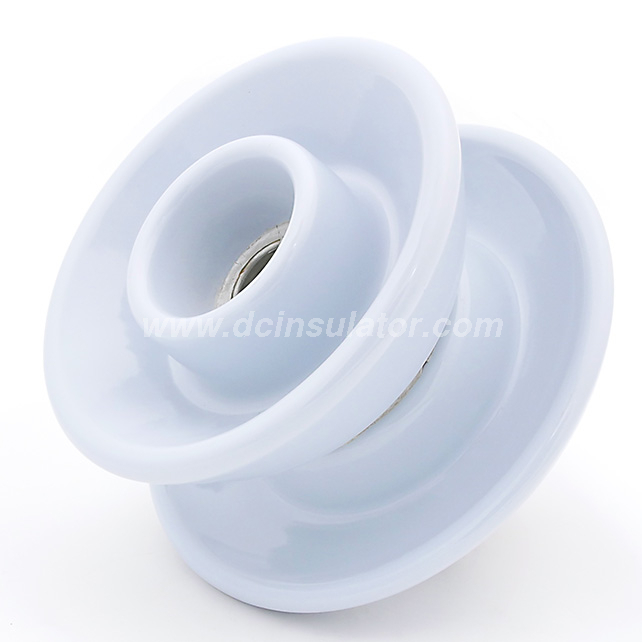

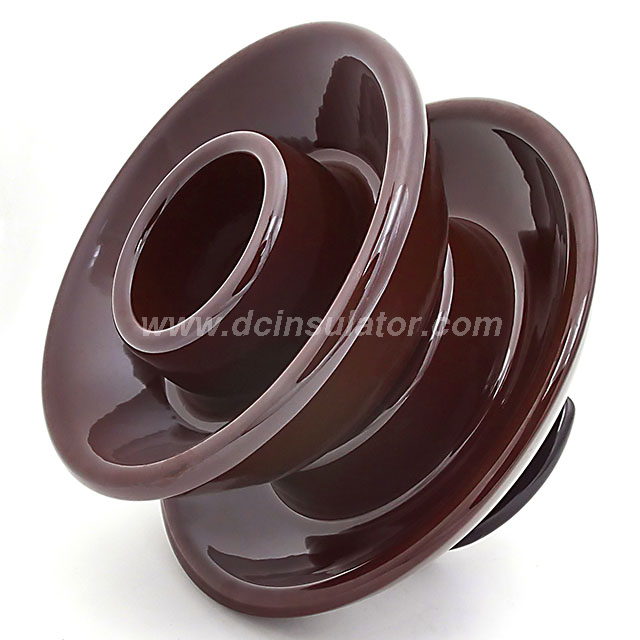

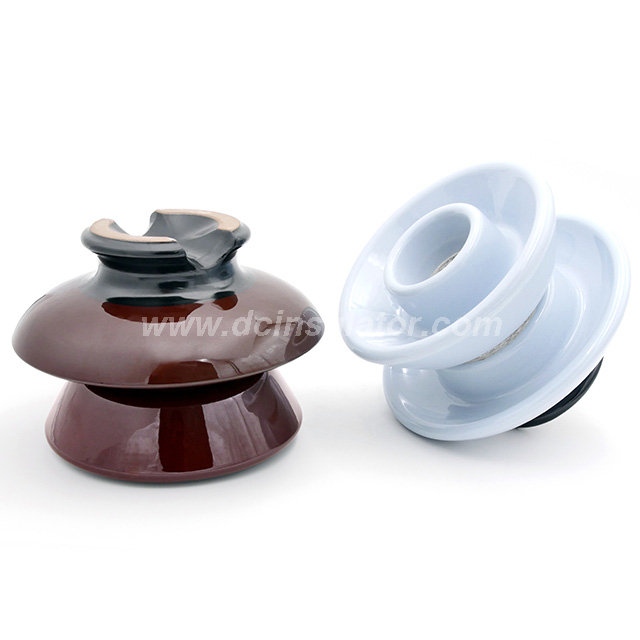

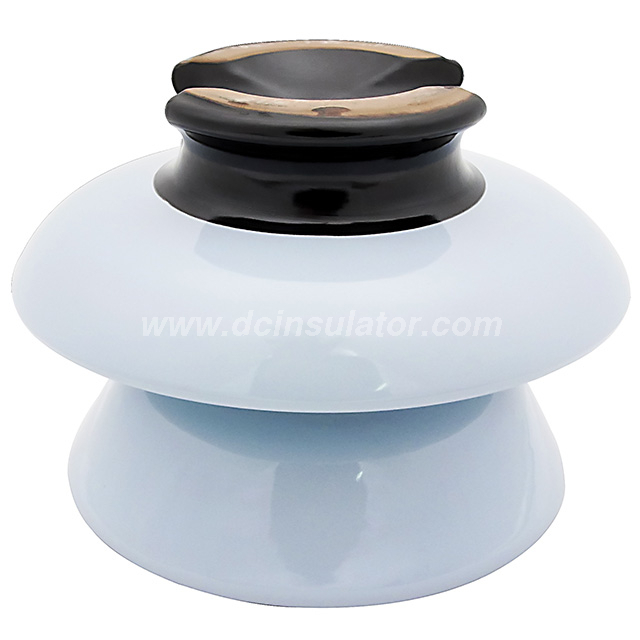

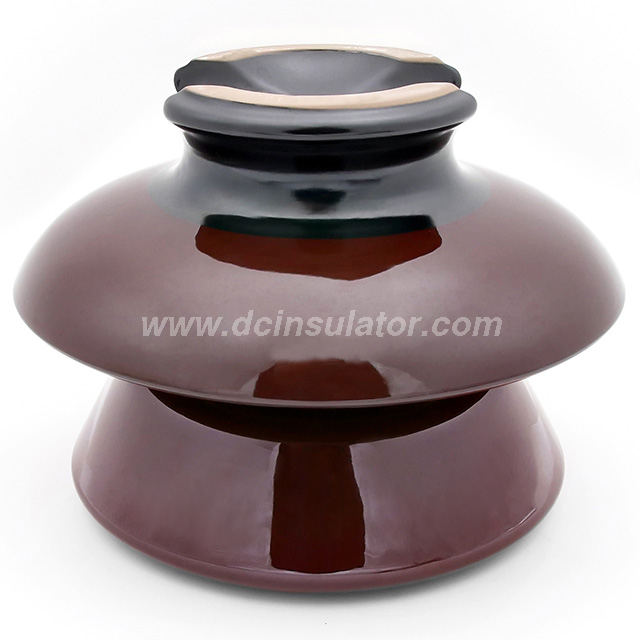

ANSI 56-2
TCI
Mechanical Values
Cantilever strength: 3000lbs(13kN)
Electrical Values
Low-frequency dry flashover: 110kV
Low-frequency wet flashover: 70kV
Critical impulse flashover, positive: 175kV
Critical impulse flashover, negative: 225kV
Low-frequency puncture voltage: 145kV
Radio-Influence Voltage Data
Low-frequency test voltage, rms to ground: 22kV
Maximum RIV at 1000 kHz: 100μV
Mechanical Values
Cantilever strength: 3000lbs(13kN)
Electrical Values
Low-frequency dry flashover: 110kV
Low-frequency wet flashover: 70kV
Critical impulse flashover, positive: 175kV
Critical impulse flashover, negative: 225kV
Low-frequency puncture voltage: 145kV
Radio-Influence Voltage Data
Low-frequency test voltage, rms to ground: 22kV
Maximum RIV at 1000 kHz: 100μV
