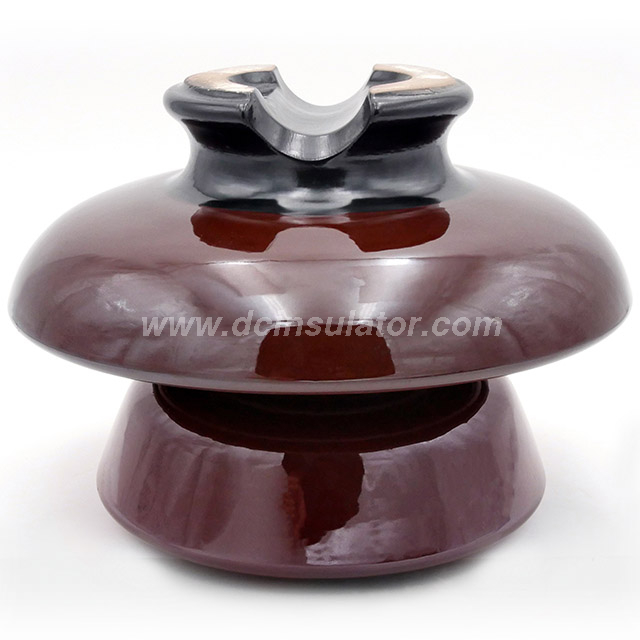

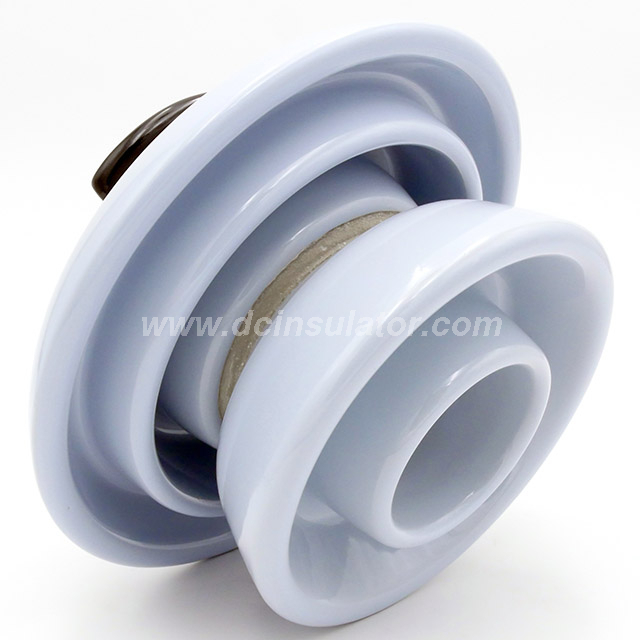

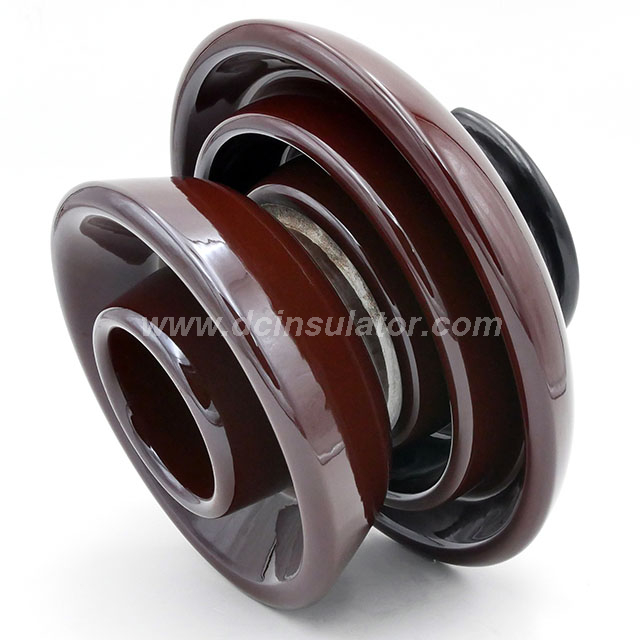

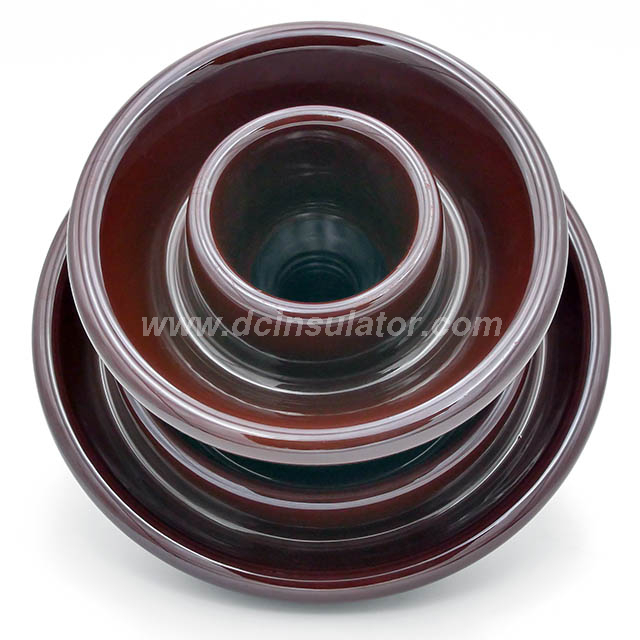

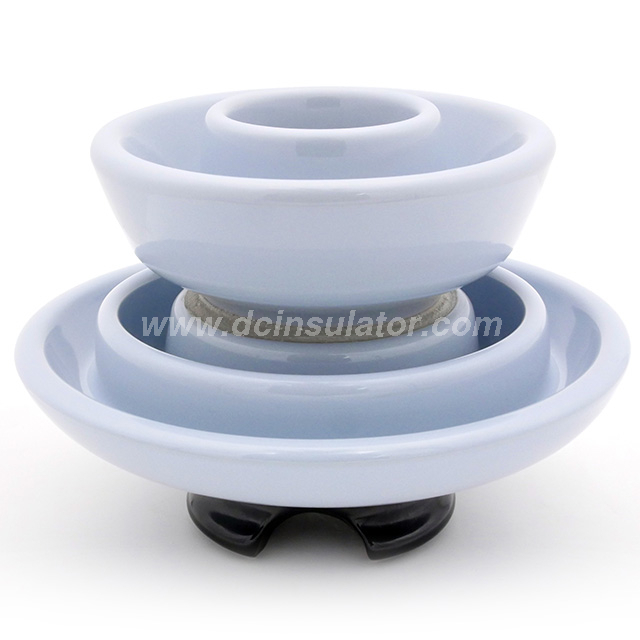

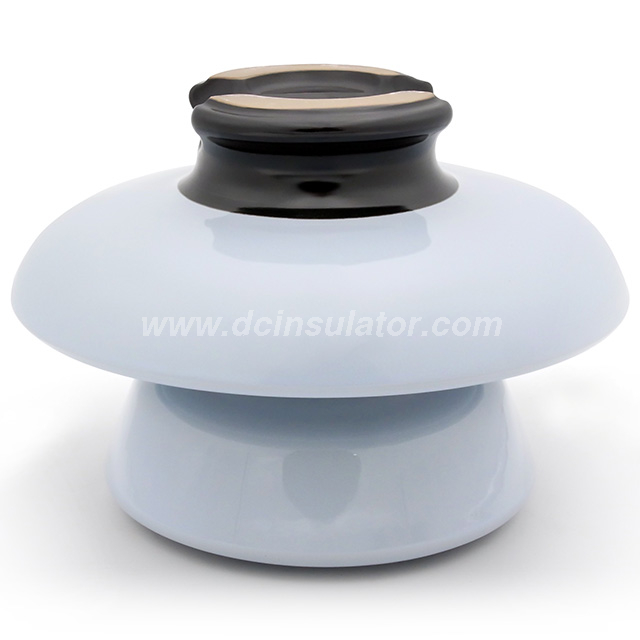

ANSI 56-3
TCI
Mechanical Values
Cantilever strength: 3000lbs(13kN)
Electrical Values
Low-frequency dry flashover: 125kV
Low-frequency wet flashover: 80kV
Critical impulse flashover, positive: 200kV
Critical impulse flashover, negative: 265kV
Low-frequency puncture voltage: 165kV
Radio-Influence Voltage Data
Low-frequency test voltage, rms to ground: 30kV
Maximum RIV at 1000 kHz: 200μV
Mechanical Values
Cantilever strength: 3000lbs(13kN)
Electrical Values
Low-frequency dry flashover: 125kV
Low-frequency wet flashover: 80kV
Critical impulse flashover, positive: 200kV
Critical impulse flashover, negative: 265kV
Low-frequency puncture voltage: 165kV
Radio-Influence Voltage Data
Low-frequency test voltage, rms to ground: 30kV
Maximum RIV at 1000 kHz: 200μV
