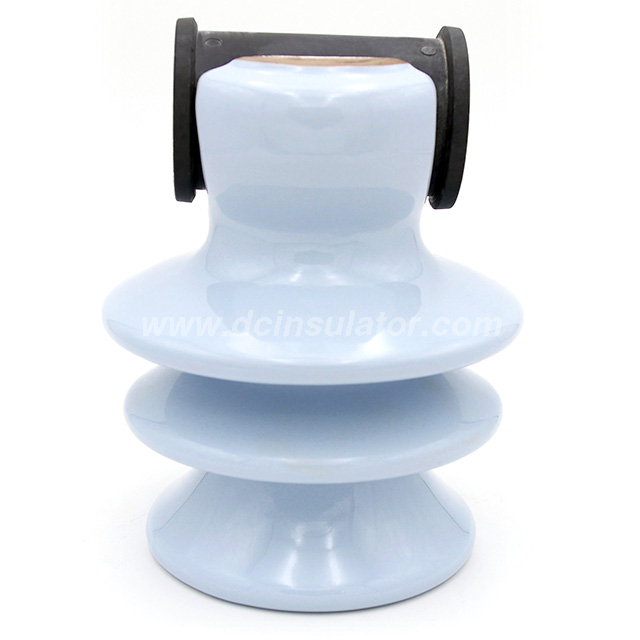

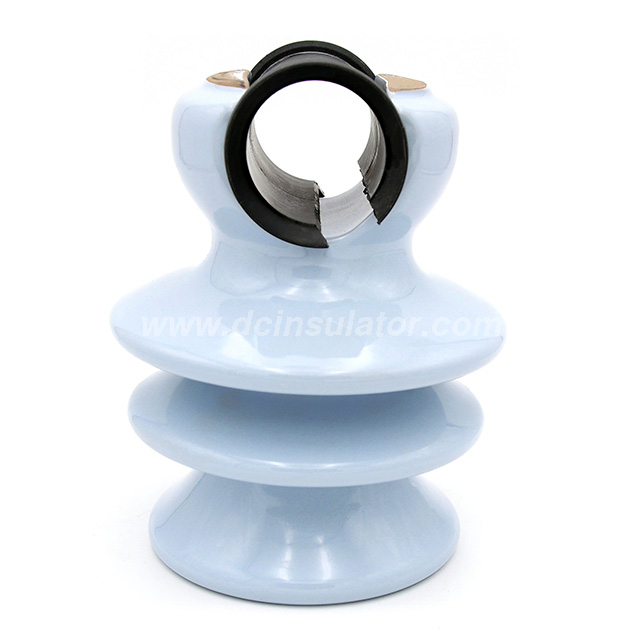

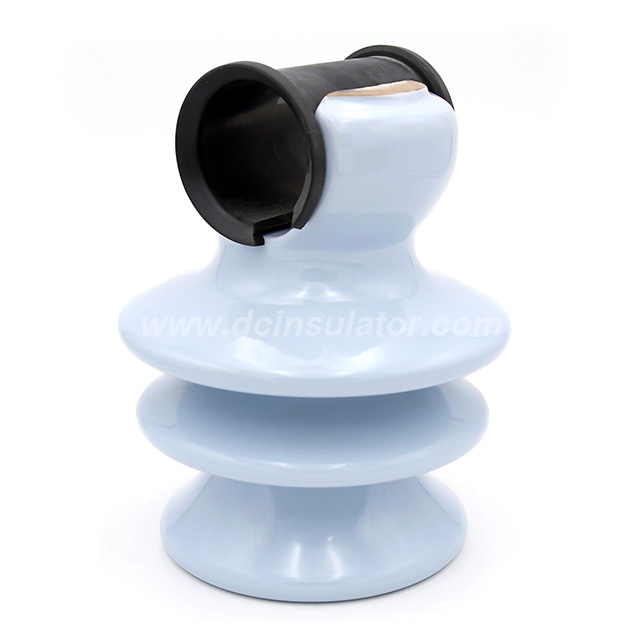

Pin Insulators HPSDI37

Dimensions
Diameter (D): 6.693Inches (170mm)
Spacing (H): 7.95Inches (202mm)
Leakage distance: 12.8Inches (325mm)
Net Weight Each: 8.05Pounds (3.65kg)
Color:Gray
Availability:
Quantity:
Inquire Add to Basket

Pin Insulators HPSDI37
Pin Insulators HPSDI37
Pin Insulators HPSDI37

  • HPSDI37

  • TCI

Mechanical Values

Cantilever strength: 2800lbs(12.5kN)


Electrical Values

Power frequency Withstand Voltage,Dry: 80kV

Power frequency Withstand Voltage,Wet: 50kV

Power frequency Puncture Voltage,Wet: 130kV

Lightning  Impulse Withstand Voltage: 125kV
