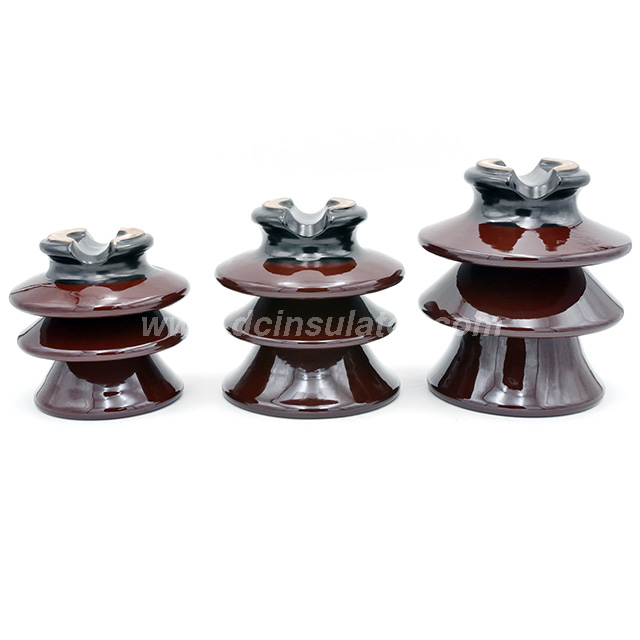

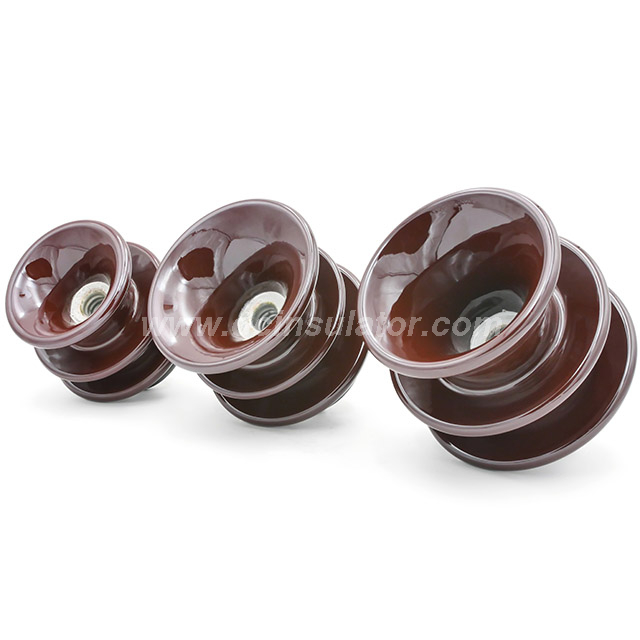

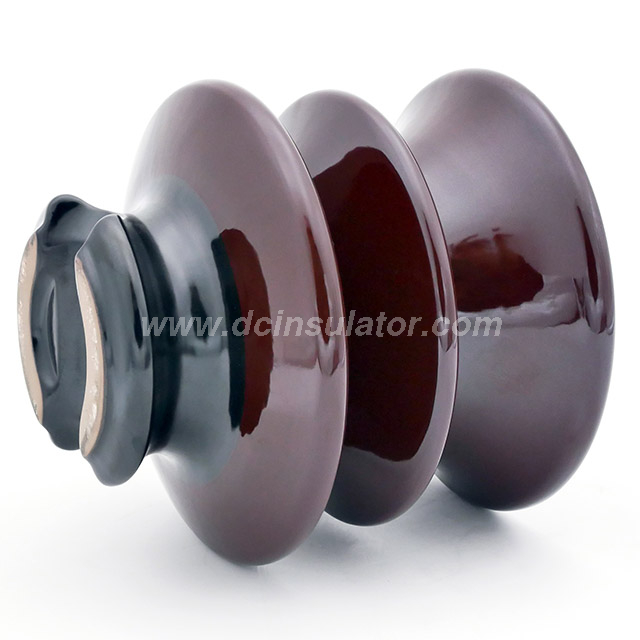

P-11-Y/320
TCI
Mechanical Values
Cantilever strength: 2250lbs(10kN)
Electrical Values
Power-frequency flashover voltage,dry : 80kV
Power-frequency flashover voltage,wet : 55kV
50% impulse flashover, positive: 120kV
50% impulse flashover, negative: 150kV
Lightning impulse withstand: 95kV
Power-frequency puncture voltage: 130kV
Mechanical Values
Cantilever strength: 2250lbs(10kN)
Electrical Values
Power-frequency flashover voltage,dry : 80kV
Power-frequency flashover voltage,wet : 55kV
50% impulse flashover, positive: 120kV
50% impulse flashover, negative: 150kV
Lightning impulse withstand: 95kV
Power-frequency puncture voltage: 130kV
