Pin Insulators P-20-D

Dimensions
Diameter (D): 6.89Inches (175mm)
Spacing (H): 7.28Inches (185mm)
Leakage distance: 15.75Inches (400mm)
Net Weight Each: 8.642Pounds (3.92kg)
Color:Brown
Availability:
Quantity:

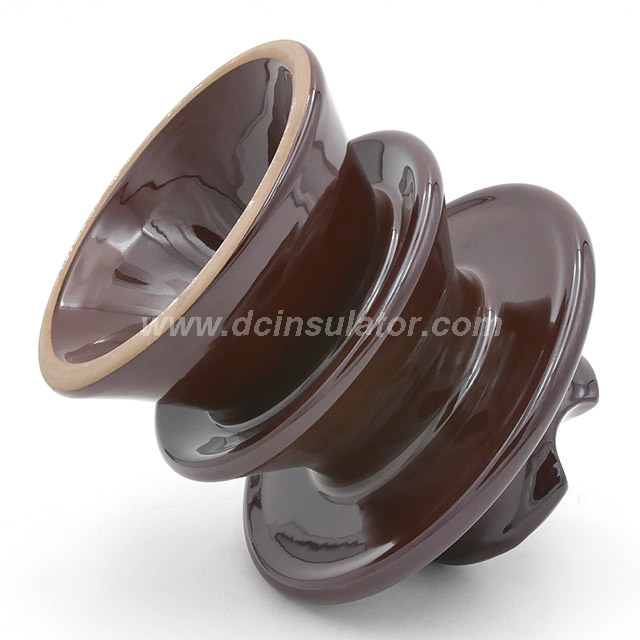

Pin Insulators P-20-D

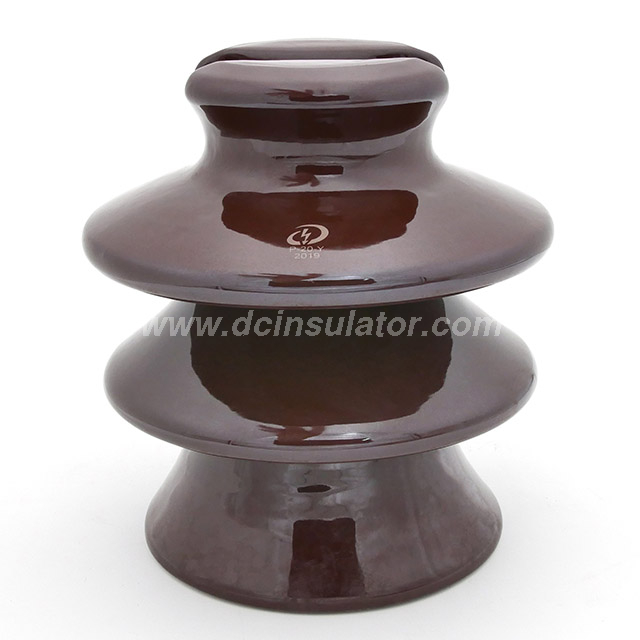

Pin Insulators P-20-D

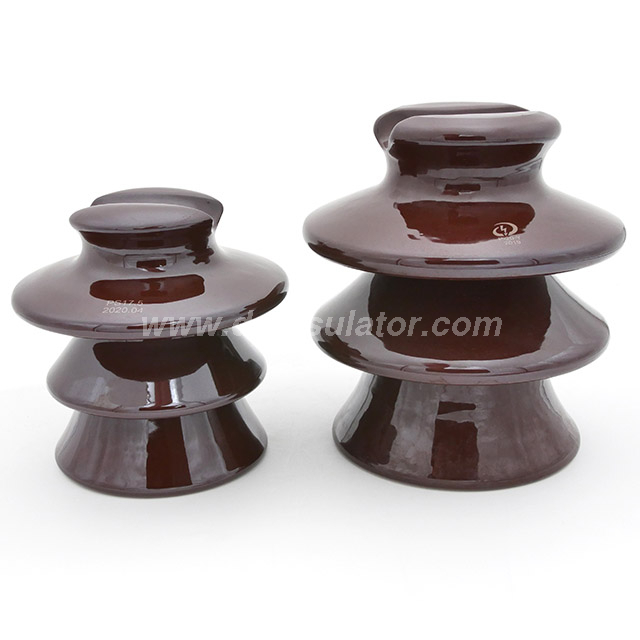

Pin Insulators P-20-D
  • P-20-D

  • TCI

Mechanical Values

Cantilever strength: 3300lbs(14.7kN)


Electrical Values

Power-frequency flashover voltage,dry : 80kV

Power-frequency flashover voltage,wet : 50kV

Critical impulse flashover voltage: 130kV

Power-frequency puncture voltage: 140kV
