Pin Insulators P-33-Y/900

Dimensions
Diameter (D): 12.6Inches (320mm)
Spacing (H): 9.65Inches (245mm)
Leakage distance: 35.433Inches (900mm)
Net Weight Each: 28.66Pounds (13kg)
Color:Brown
Availability:
Quantity:
Inquire Add to Basket

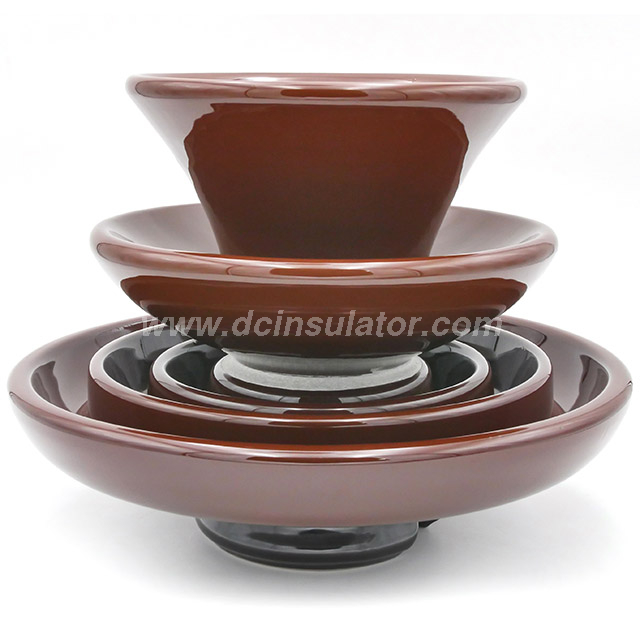

Pin Insulators P-33-Y/900

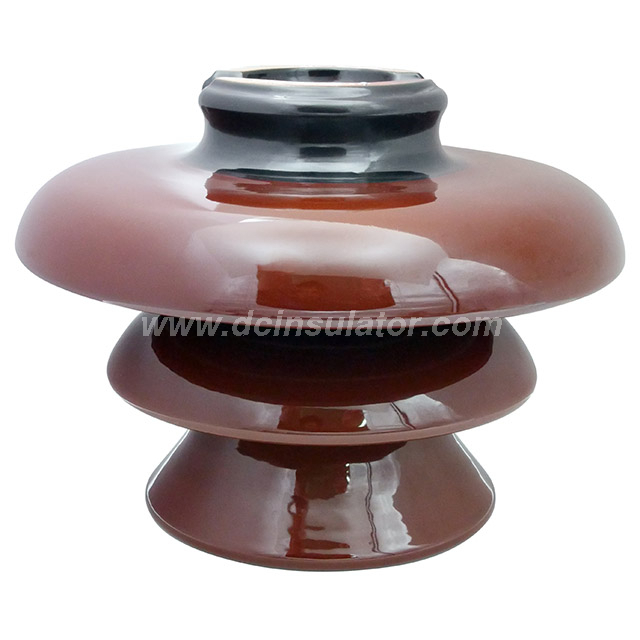

Pin Insulators P-33-Y/900

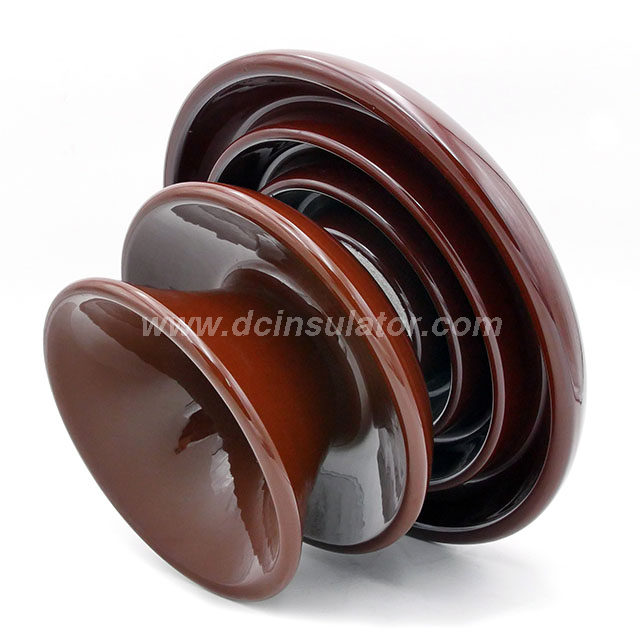

Pin Insulators P-33-Y/900

  • P-33-Y/900

  • TCI

Mechanical Values

Cantilever strength: 2250lbs(10kN)


Electrical Values

Rated Voltage: 33kV

Power Frequency Withstand Voltage,Wet: 95kV

Lightning Impulse Withstand Voltage: 200kV


Previous:
Next:
Pin Insulator porcelain insulator 33 kV
